T型輔助器 ETB

規格：台規

材質：YK-30
硬度：HRC56~

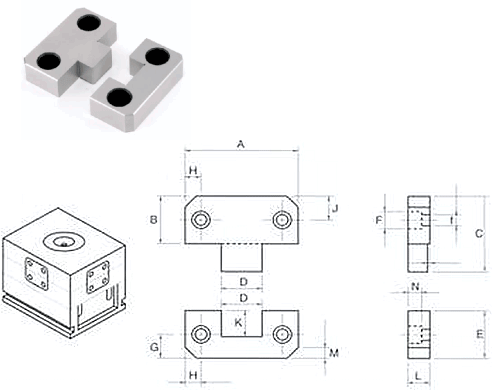

ETB公差尺寸表

品名	A 0 -.0004	B	C	D .0008	E	F	f	G	H	J	K	L	M	N
ETB-1.5"	1.5000	.870	1.180	.5000	0.870	.433	.276	.281	.281	.437	.350	.620	.19	.30
ETB-2"	2.0000	.870	1.180	.6800	0.870	.433	.276	.375	.375	.437	.350	.620		.30
ETB-3"	3.0000	1.360	19.10	1.0000	1.370	.590	.413	.688	.375	.688	.590	.745		.45
ETB-4"	4.0000	1.870	2.640	1.3750	1.870	.590	.413	.875	.625	.875	.810	.745	.50	.45
ETB-5"	5.0000	1.870	2.640	1.7500	1.870	.788	.555	.875	.750	.875	.810	1.12	.50	.60

※標示方法:ETB-1.5"=數量
