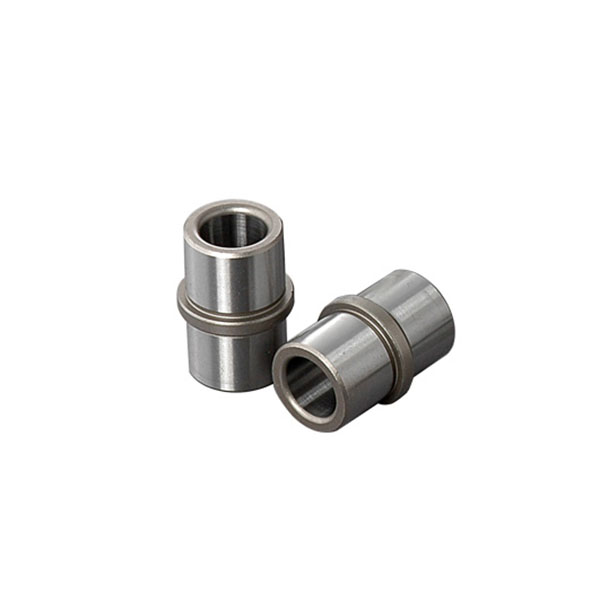

頂出導套 B-3

規格：台規

材質：SUJ-2
熱處理硬度:HRC58°~

公差尺寸表

圓徑 d d1 d2 D H L ℓ H ℓ1
尺寸 公差 尺寸 公差 尺寸 公差
18 12 +0.008
+0.018		 18 0
-0.01		 18 -0.08
-0.10		 22 5 24 11 5 8
20 12 20 20 25 26 13 8
25 16 25 25 30 31 13 13
30 20 30 30 35 36 18 13
35 25 35 35 40 41 18 18
40 30 40 40 45 46 23 18
42 30 42 42 47 51 23 23
45 35 +0.013
+0.023		 45 45 50 56 28 23
48 35 48 48 53 61 28 28
50 40 50 50 55 66 33 28
55 40 55 55 60 71 33 33
65 50 +0.015
+0.025		 65 65 70 76 38 33
81 38 38
                  91 43 43
                  101 48 48

庫存表

L\d1 ℓ H ℓ1 18 20 25 30 35 40 42 45 48 50 55 65
d 12 12 16 20 25 30 30 35 35 40 40 50
24 11 5 8 ● ● ● 　 　 　 　 　 　 　 　 　
26 13 8 ● ● ● ● ● ● 　 　 　 　 　 　
31 13 13 ● ● ● ● ● ● ● ● ● 　 　 　
36 18 13 ● ● ● ● ● ● ● ● ● ● 　 　
41 18 18 ● ● ● ● ● ● ● ● ● ● ● ●
46 23 18 　 　 ● ● ● ● ● ● ● ● ● ●
51 23 23 　 　 ● ● ● ● ● ● ● ● ● ●
56 28 23 　 　 　 ● ● ● ● ● ● ● ● ●
61 28 28 　 　 　 ● ● ● ● ● ● ● ● ●
66 33 28 　 　 　 　 ● ● ● ● ● ● ● ●
71 33 33 　 　 　 　 ● ● ● ● ● ● ● ●
76 38 33 　 　 　 　 　 ● 　 ● 　 ● ● ●
81 38 38 　 　 　 　 　 ● 　 ● 　 ● ● ●
91 43 43 　 　 　 　 　 ● 　 ● 　 ● ● ●
101 48 48 　 　 　 　 　 　 　 　 　 　 ● ●

※標示方法:B-3         d1×d×L=數量
