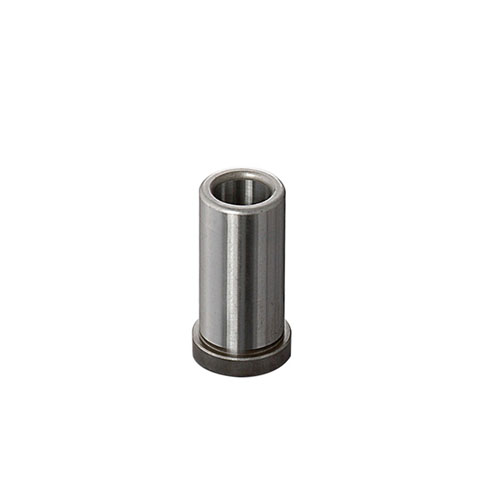

導套 B-1

規格：台規

材質：SUJ-2
熱處理硬度：HRC58°~

公差尺寸表

圓徑 d d1 D H E(B-2)
尺寸 公差 尺寸 公差 L:22以下 L:23以上
16 10 +0.008
+0.015		 16 +0.015
+0.021		 20 5 3
16 12 16 20 8 4
20 14 +0.010
+0.020		 20 25 8 4 6
25 16 25 30
25 18 25 30
30 20 30 35
35 25 35 40 6 8
40 25 40 45
40 30 40 45
45 30 +0.013
+0.023		 45 50 10
45 35 45 50
50 35 50 55
50 40 50 55
55 40 55 60
55 45 55 60
60 45 +0.015
+0.025		 60 65 12 10
65 50 65 70
70 50 70 75 15 8
70 55 70 75
75 60 +0.020
+0.030		 75 80
80 60 80 85
80 65 80 85
90 70 90 95
100 80 100 105

※標示方法:B-1   d1×d×L=數量
※標示方法:B-2   d1×d×L=數量
※B-1:L1=d部×2+5mm
※B-2:d部全面研磨
※內徑30圓以內L超過104長以上內孔d部×3

B-1 庫存表

L d1 16 20 25 25 30 35 40 45 50 55 55 60 65 70 70 75 80 80 90 100
d 12 14 16 18 20 25 30 35 40 40 45 45 50 50 55 60 60 65 70 80
D 20 25 30 30 35 40 45 50 55 60 60 65 70 75 75 80 85 85 95 105
H 8 8 8 8 8 8 8 10 10 10 10 12 12 15 15 15 15 15 15 15
18 ● ● ● ● ● ● ● 　 　 　 　 　 　 　 　 　 　 　 　 　
23 ● ● ● ● ● ● ● ● 　 　 　 　 　 　 　 　 　 　 　 　
28 ● ● ● ● ● ● ● ● ● ● 　 　 　 　 　 　 　 　 　 　
33 ● ● ● ● ● ● ● ● ● ● ● ● ● ● 　 　 　 　 　 　
36 　 ● ● ● ● ● ● ● 　 　 　 　 　 　 　 　 　 　 　 　
38 ● ● ● ● ● ● ● ● ● ● ● ● ● ● 　 　 　 　 　 　
43 ● ● ● ● ● ● ● ● ● ● ● ● ● ● 　 　 　 　 　 　
48 ● ● ● ● ● ● ● ● ● ● ● ● ● ● 　 　 　 　 　 　
52 ● ● ● ● ● ● ● ● ● ● ● ● ● ● 　 　 　 　 　 　
58 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
62 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● 　 　 　 　 　
68 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
72 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● 　 　 　 　 　
78 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
82 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● 　 　 　 　 　
88 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
92 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● 　 　 　 　 　
98 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
102 　 　 　 　 ● ● ● ● ● ● ● ● ● ● ● 　 　 　 　 　
108 　 　 ● 　 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
112 　 　 　 　 ● ● ● ● ● ● ● ● ● ● ● 　 　 　 　 　
118 　 　 ● 　 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
122 　 　 　 　 ● ● ● ● ● ● ● ● ● ● ● 　 　 　 　 　
128 　 　 ● 　 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
132 　 　 　 　 　 ● ● ● ● ● ● ● ● ● ● 　 　 　 　 　
138 　 　 ● 　 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
142 　 　 　 　 　 　 ● ● ● ● ● ● ● ● ● 　 　 　 　 　
148 　 　 ● 　 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
158 　 　 　 　 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
168 　 　 　 　 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
178 　 　 　 　 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
188 　 　 　 　 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
198 　 　 　 　 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
208 　 　 　 　 　 　 　 　 　 ● 　 ● ● ● 　 　 ● 　 ● ●
218 　 　 　 　 　 　 　 　 　 ● 　 ● ● ● 　 　 ● 　 ● ●
228 　 　 　 　 　 　 　 　 　 ● 　 ● ● ● 　 　 ● 　 ● ●
238 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 ● ●
248 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 ● ●



L d1 16 25 40 45
d 10 16 30 35
D 20 30 45 50
H 5 8 8 10
14 ● 　 　 　
19 ● ● ● 　
24 ● ● ● 　
29 ● ● ● ●
34 ● ● ● ●
39 ● ● ● ●
44 ● ● ● ●
49 ● ● ● ●
54 　 ● ● ●
59 　 ● ● ●
69 　 ● ● ●
79 　 ● ● ●
89 　 ● ● ●
99 　 ● ● ●
109 　 　 ● ●
119 　 　 ● ●
129 　 　 ● ●
139 　 　 ● ●
149 　 　 ● ●
