PULLER BOLT B TYPE

CATEGORY：Japan

Material:SCM-435
Heat Treatment Hardness:HRC38°~44°

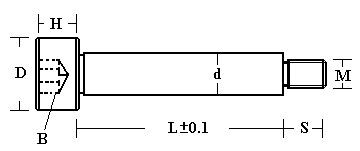

PBB Tolerance Chart

Tolerance Chart		d		D		H		M		B		S
Tolerance Chart		Size	Tolerance	Size	Tolerance	Size	Tolerance	M		B		S
6		6	-0.03 -0.06	10	0 -0.30	4.5	0 -0.20	5		3		10
8		8		13		5.5		6		4		11
10		10		16		7		8		5		13
12		12	-0.04 -0.07	18		8		10		6		16
13		13		18		9		10		6		16
16		16		24		11		12		8		18
20		20	-0.05 -0.09	30		14		16		10		22
25		25		33		18		20		17		27
30		30		38		20		24		17		33

※Display Method:PBB d×L=Quantity

PBB Stock Chart

L\d	6	8	10	12	13	16	20
10	●	●	●
12	●	●	●
15	●	●		●	●
16	●	●	●	●		●
20	●	●	●	●	●	●	●
25	●	●	●	●	●	●	●
30	●	●	●	●	●	●	●
35	●	●	●	●	●	●	●
40	●	●	●	●	●	●	●
45	●	●	●	●	●	●	●
50	●	●	●	●	●	●	●
55	●	●	●	●	●	●	●
60	●	●	●	●	●	●	●
65	●	●	●	●	●	●	●
70	●	●	●	●	●	●	●
75	●	●	●	●	●	●	●
80	●	●	●	●	●	●	●
85	●	●	●	●	●	●	●
90	●	●	●	●	●	●	●
95						●
100	●	●	●	●	●	●	●
110			●	●	●	●	●
120			●	●	●	●	●
130				●	●	●	●
140				●	●	●	●
150				●	●	●	●
160				●	●	●	●
170				●	●	●	●
180				●	●	●	●
190				●	●	●	●
200				●	●	●	●
